Rod Eye Bolt Joint End

About Rod Eye Bolt Joint End

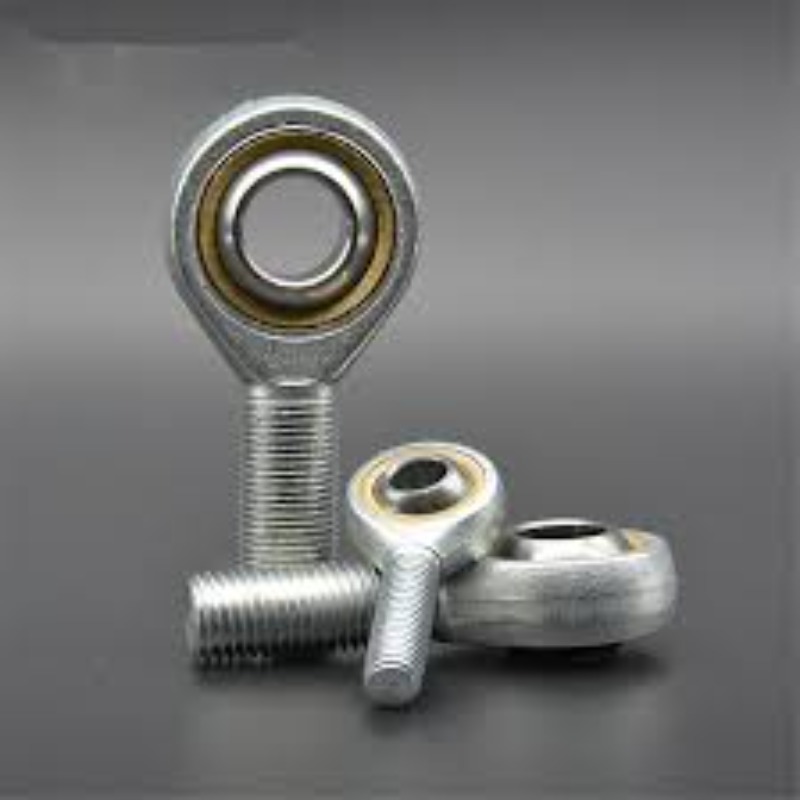

A Rod Eye Bolt Joint End (often called a rod eye end or eye-end joint) is a mechanical linkage component used to connect a rod, cylinder, or actuator to another part through a pivoting pin connection.

Description

• It consists of a threaded shank attached to a rod and an eye-shaped head with a circular hole.
• A pin, bolt, or shaft passes through the eye to create a hinged connection.
• The joint allows angular movement in one plane while transmitting tensile or compressive forces.
• Commonly manufactured from carbon steel, stainless steel, or forged alloy steel for strength and durability.

Applications

• Hydraulic and pneumatic cylinders
• Industrial machinery
• Construction equipment
• Agricultural implements
• Material-handling systems
• Linkage and actuator assemblies

Technical Details
